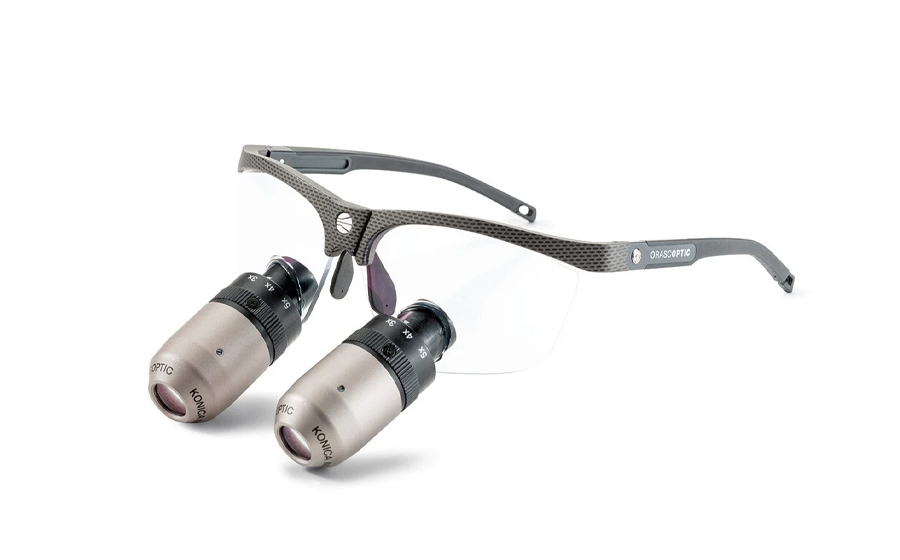

EyeZoom™
An innovative variable magnification loupe that allows seamless adjustment between multiple magnification levels without changing lenses.
| Magnification | 3x, 4x, 5x |
| Weight | 2.27 oz (64.2 g) |
| Field Width @ 3x | 3.7" (9.5 cm) |
| Field Width @ 4x | 2.9" (7.4 cm) |
| Field Width @ 5x | 2.4" (6.1 cm) |

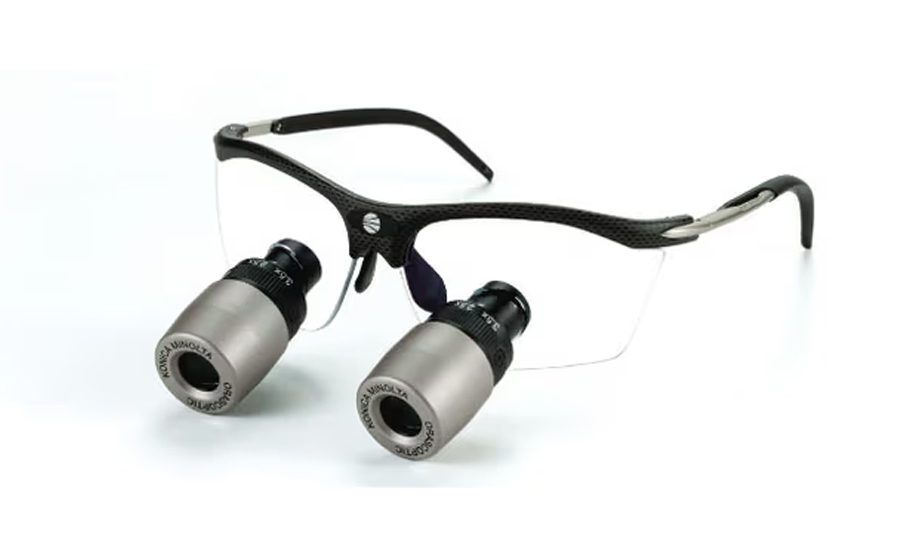

EyeZoom™ Mini
A lighter and more compact version of EyeZoom, designed for improved comfort and reduced weight while maintaining full variable magnification functionality.
| Magnification | 2.5x, 3.5x |
| Weight | 1.79 oz (50.8 g) |
| Field Width @ 2.5x | 4.0" (10.1 cm) |
| Field Width @ 3.5x | 3.2" (8.1 cm) |
| Field Depth @ 2.5x | 4.8" (12.1 cm) |
| Field Depth @ 3.5x | 3.8" (9.6 cm) |

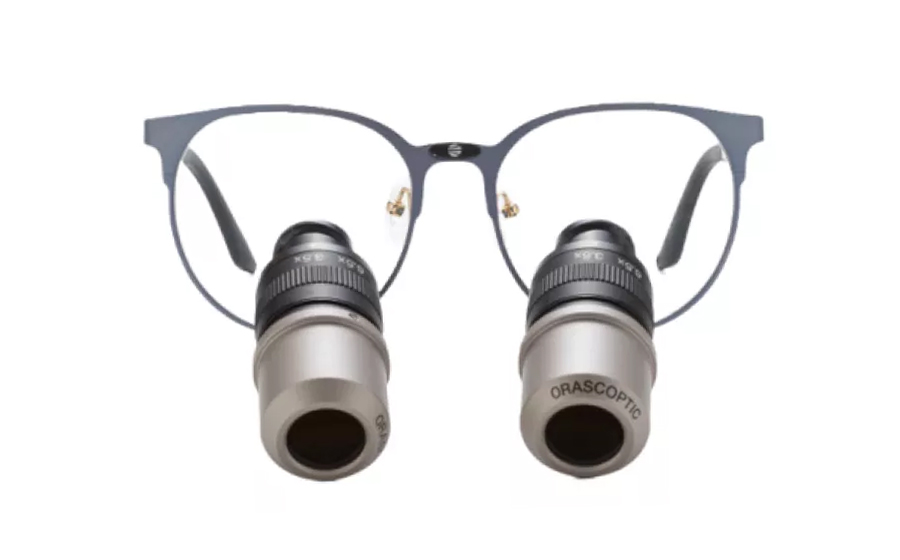

EyeZoom™ Max
The most advanced EyeZoom model, offering the widest magnification range and enhanced optical performance for complex and detailed procedures.
| Magnification | 3.5x, 6.5x |
| Weight | 2.27 oz (64.4 g) |
| Field Width @ 3.5x | 3.5" (8.8 cm) |
| Field Width @ 6.5x | 2.2" (5.6 cm) |
| Field Depth @ 3.5x | 3.5" (8.8 cm) |
| Field Depth @ 6.5x | 2.0" (5.0 cm) |

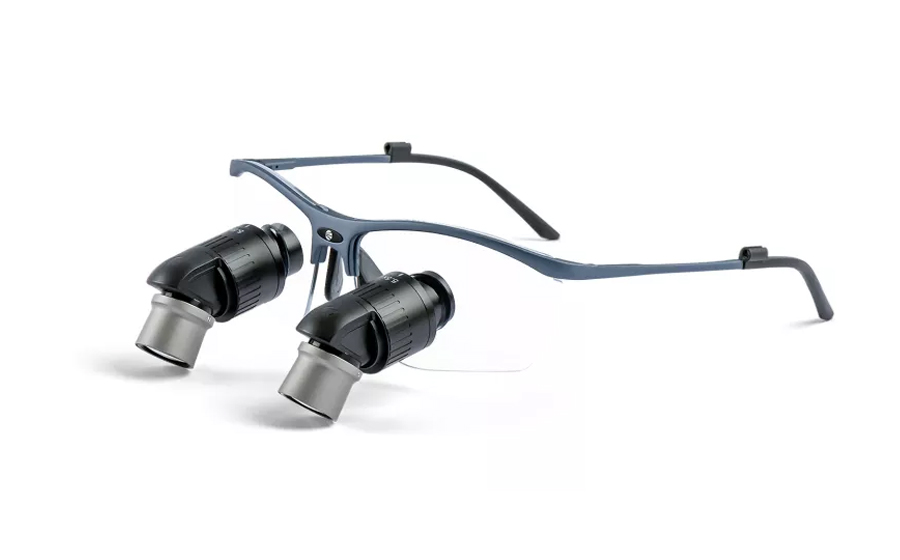

ErgoZoom™
A hybrid loupe combining variable magnification with ergonomic design, helping maintain proper posture and reducing neck and back strain during extended use.
| Magnification | 3.5x, 5.5x |
| Weight | 1.52 oz (43.2 g) |
| Width @ 3.5x | 3.60" (9.2 cm) |
| Width @ 5.5x | 2.71" (6.9 cm) |
| Depth @ 3.5x | 3.58" (9.1 cm) |
| Depth @ 5.5x | 2.51" (6.4 cm) |
